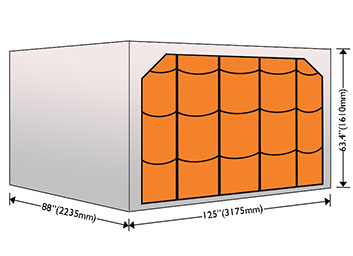

AAP/AA2 LD-9
|
NAS3610 class |
2A2C |
|
U.S domestic code |
LD-9 |
|
Aircraft types |
All B747, B767, A330, A380 |
|
Main deck / lower deck |
both |
|
Base size |
88 x 125in (2235 x 3175mm) |
|
Height |
63.4in (1610mm) |
|
Roof length |
125in (3175mm) |
|
Max. gross weight |
10198lb (4626kg) (1) |
|
Internal volume |
364cu ft (10.3cu m) |
|
External volume |
396cu ft (11.2cu m) |
|
Door opening |
115.3 x 58in (2928 x 1474mm) |
|
Tare weight |
441 – 602lb (200 – 273kg) (4) |
|
IATA contour code |
P |

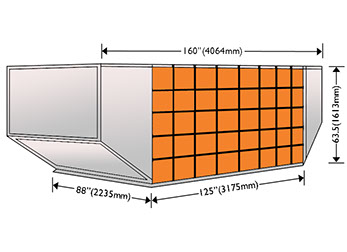

AAF LD-26
|
NAS3610 class |
2A2C |
|
U.S domestic code |
LD-26 |
|
Aircraft types |
All B747, A330, A380 |
|
Main deck / lower deck |
lower |
|
Base size |
88 x 125in (2235 x 3175mm) |
|
Height |
63.5in (1613mm) |
|
Roof length |
160in (4064mm) |
|
Max. gross weight |
10198lb (4626kg) (1) |
|
Internal volume |
459cu ft (13cu m) |
|
External volume |
479cu ft (13.6cu m) |
|
Door opening |
115.3 x 58in (2928 x 1474mm) |
|
Tare weight |
630lb (286kg) (4) |
|
IATA contour code |
F |

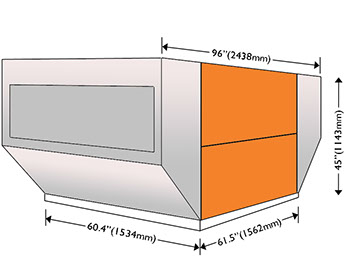

AKH LD-45
|
NAS3610 class |
2K2C |
|
U.S domestic code |
LD-45 |
|
Aircraft types |
A320 |
|
Main deck / lower deck |
lower |
|
Base size |
60.4 x 61.5in (1534 x 1562mm) |
|
Height |
45in (1143mm) |
|
Roof length |
96in (2438mm) |
|
Max. gross weight |
2204lb (1000kg) (1) |
|
Internal volume |
131cu ft (3.7cu m) |
|
External volume |
138cu ft (3.9cu m) |
|
Door opening |
56 x 42.9in (1422 x 1090mm) |
|
Tare weight |
176lb (80kg) (4) |
|
IATA contour code |
H |

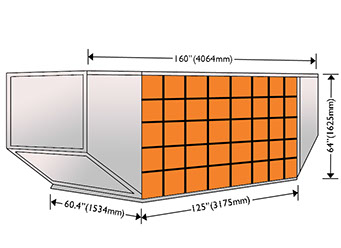

ALF LD-6
|
NAS3610 class |
2L2C |
|
U.S domestic code |
LD-6 |
|
Aircraft types |
All B747, A330, A380 |
|
Main deck / lower deck |
lower |
|
Base size |
60.4 x 125in (1534 x 3175mm) |
|
Height |
64in (1625mm) |
|
Roof length |
160in (4064mm) |
|
Max. gross weight |
7000lb (3175kg) (1) |
|
Internal volume |
314cu ft (8.9cu m) |
|
External volume |
332cu ft (9.4cu m) |
|
Door opening |
116.5 x 58.8in (2959 x 1494mm) |
|
Tare weight |
353lb (160kg) (4) |

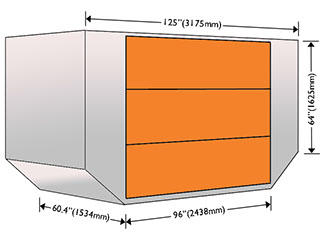

DQF LD-8
|
NAS3610 class |
N/A |
|
U.S domestic code |
LD-8 |
|
Aircraft types |
B767 |
|
Main deck / lower deck |
lower |
|
Base size |
60.4 x 96in (1534 x 2438mm) |
|
Height |
64in (1625mm) |
|
Roof length |
125in (3175mm) |
|
Max. gross weight |
5400lb (2449kg) (1) |
|
Internal volume |
258cu ft (7.3cu m) |
|
External volume |
279cu ft (7.9cu m) |
|
Door opening |
90.5 x 60.1in (2299 x 1527mm) |
|
Tare weight |
282lb (128kg) (4) |
|
IATA contour code |
H |

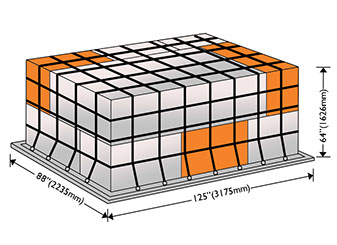

PAG LD-7
|
NAS3610 class |
2A4P |
|
U.S domestic code |
LD-7 |
|
Aircraft types |
All B747, B767, A330, A380 |
|
Main deck / lower deck |
lower |
|
Base size |
88 x 125in (2235 x 3175mm) |
|
Max. gross weight |
10198lb (4626kg) (1) |
|
Tare weight |
242lb (110kg) (4) |
|
IATA contour code |
P |

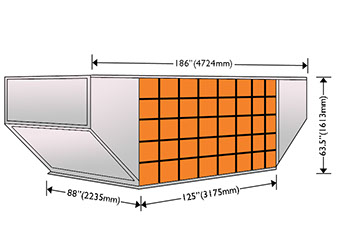

AAU LD-29
|
NAS3610 class |
2A2C |
|
U.S domestic code |
LD-29 |
|
Aircraft types |
All B747 |
|
Main deck / lower deck |
lower |
|
Base size |
88 x 125in (2235 x 3175mm) |
|
Height |
63.5in (1613mm) |
|
Roof length |
186in (4724mm) |
|
Max. gross weight |
10198lb (4626kg) (1) |
|
Internal volume |
503cu ft (14.3cu m) |
|
External volume |
524cu ft (14.9cu m) |
|
Door opening |
115.3 x 58in (2927 x 1474mm) |
|
Tare weight |
573lb (259kg) (4) |
|
IATA contour code |
U |

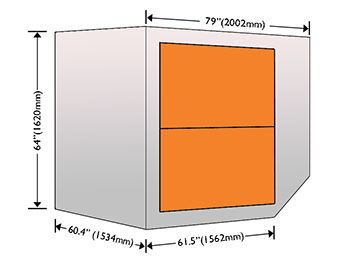

AKE LD-3
|
NAS3610 class |
2K2C |
|
U.S domestic code |
LD-3 |
|
Aircraft types |
All B747, B767, A330, A380 |
|
Main deck / lower deck |
lower |
|
Base size |
60.4 x 61.5in (1534 x 1562mm) |
|
Height |
64in (1620mm) |
|
Roof length |
79in (2002mm) |
|
Max. gross weight |
3500lb (1587kg) (1) |
|
Internal volume |
159cu ft (4.5cu m) |
|
External volume |
168cu ft (4.8cu m) |
|
Door opening |
56.2 x 60.4in (1427 x 1533mm) |
|
Tare weight |
156 – 174lb (70 – 79kg) (4) |
|
IATA contour code |
E |

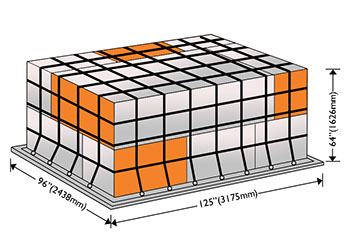

PMC
|
NAS3610 class |
2M3P |
|
U.S domestic code |
PLT |
|
Aircraft types |
All B747, B767, A330, A380 |
|
Main deck / lower deck |
lower |
|
Base size |
96 x 125in (2438 x 3175mm) |
|
Max. gross weight |
11243lb (5100kg) (1) |
|
Tare weight |
242lb (110kg) (4) |
|
IATA contour code |
P |

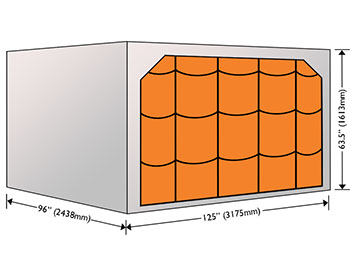

AMP
|
NAS3610 class |
2M3C |
|
U.S domestic code |
– |
|
Aircraft types |
All B747, B767, A330, A380 |
|
Main deck / lower deck |
both |
|
Base size |
96 x 125in (2438 x 3175mm) |
|
Height |
63.5in (1613mm) |
|
Max. gross weight |
11243lb (5100kg) (1) |
|
Internal volume |
552cu ft (14.3cu m) |
|
External volume |
585cu ft (14.8cu m) |
|
Door opening |
115.3 x 58in (2928 x 1474mm) |
|
Tare weight |
586lb (265kg) |
|
IATA contour code |
P |
|
IATA contour code |
E |
